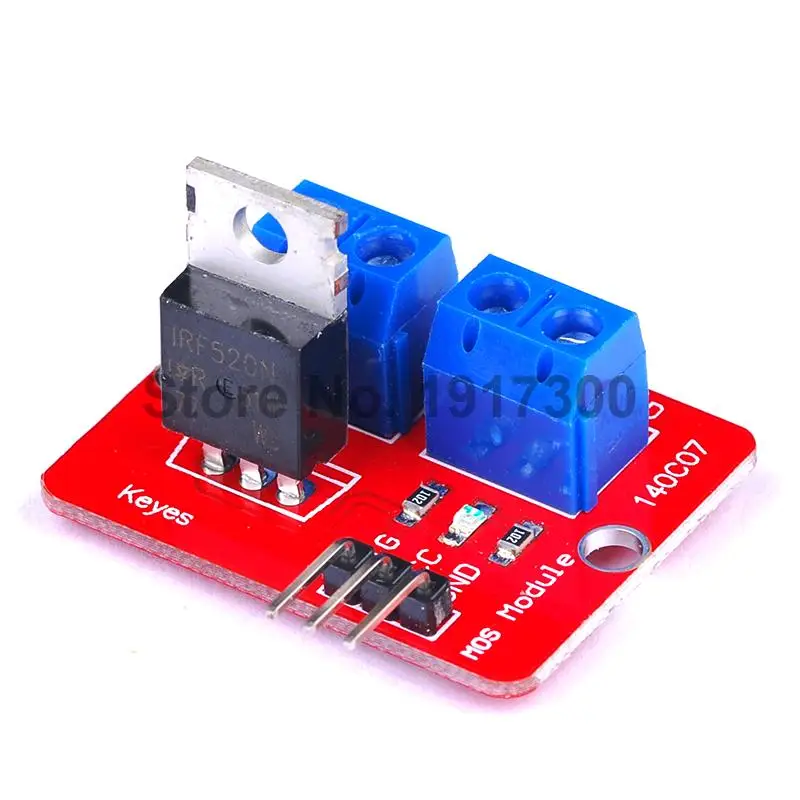

0-24V Top Mosfet Button IRF520 MOS Driver Module For Arduino MCU ARM Raspberry pi
First, the product parameters Dimensions: 33 * 24mm Weight: 10g Voltage: 3.3V, 5V Ports: Digital Level Output load voltage: 0-24V Output load current: <5A (1A or more need to add heat sink) Platform: Arduino, MCU, ARM, Raspberry Pi Second, product characteristics Using original IRF520 power MOS, you can adjust the output PWM Arduino drive up to 24V allows loads such as LED lights, dc motor, micro pumps, solenoid valves PWM dimming LED can be used to achieve stepless dimming, variable speed motor Note: The driver must be installed more than 1A of load heatsink
