Leonardo R3 development Board Microcontroller ATmega32u4+USB Cable compatible for arduino

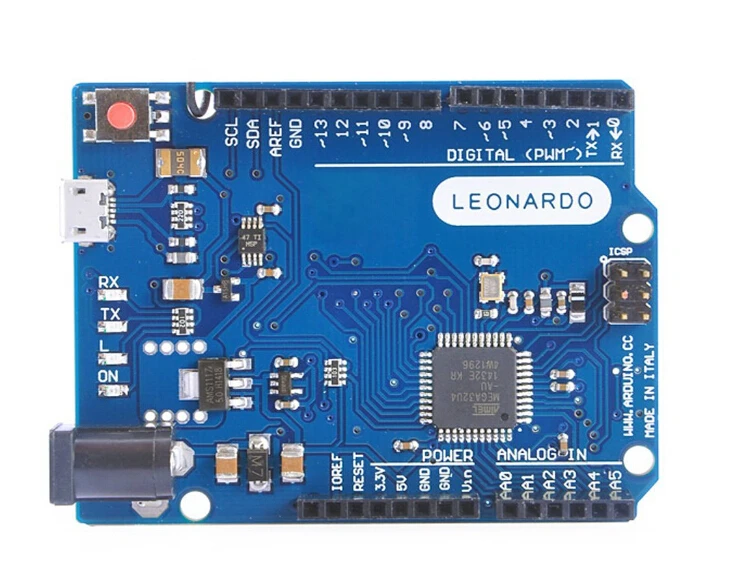

The Leonardo Board is a microcontroller board based on the ATmega32u4 for Arduino. It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.
The Leonardo differs from all preceding boards in that the ATmega32u4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Leonardo to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port.
Input Voltage (recommended):7-12V
Input Voltage (limits):6-20V
Digital I/O Pins:20
Analog Input Channels:12
DC Current per I/O Pin:40 mA
DC Current for 3.3V Pin:50 mA
Flash Memory:32 KB (ATmega32u4) of which 4 KB used by bootloader
SRAM:2.5 KB (ATmega32u4)
EEPROM:1 KB (ATmega32u4)
Clock Speed:16 MHz
Length: 68.6 mm
Width: 53.3 mm
Weight: about 20g
1x Leonardo R3 Board
