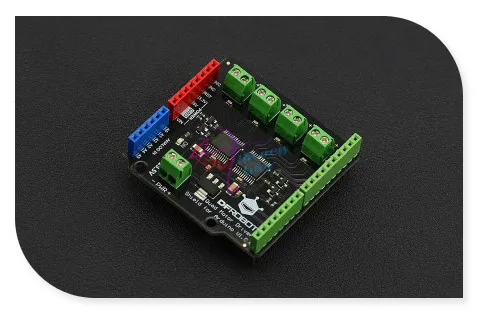

DFRobot 100% Genuine Quad DC Motor Driver Shield, 2.5~13.5V 4×1.2A compatible with Arduino 5V/3.3V controller

100 % of buyers enjoyed this product!
Availability: in stock
TODAY'S DEAL Ends in: 04:36:18
Price:  US $23.89 / piece
Sale Price:  US $22.70 / piece
In Stock
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Sort By

Top-rated Seller

Share:

DFRobot 100% Genuine Quad DC Motor Driver Shield, 2.5~13.5V 4×1.2A compatible with Arduino 5V/3.3V controller Introduction

  • The latest quad motor driver shield for Arduino, compatible with Arduino 5V/3.3V controller, can control up to four DC motors with 8 pins at the same time. The shield supports PWM speed control and polarity control. The driver shield includes two TB6612FNG motor driver chips, compared with the traditional L298N chip, efficiency is improved and the component size also greatly reduced. The chip doesn\\\’t heat in to the rated range, and a single path maximum output 1.2A continuous current. The module includes a built-in low voltage detection circuit and thermal shutdown protection circuit, which is safe and reliable. This module is suitable for all kinds of DIY production.

Photos Specification

  • VM Motor Power Supply: 2.5~13.5V
  • VCC Logic Power Supply: 2.7~5.5 V
  • Output Current: 1.2A continuous current (per channel)
  • Start/Peak Current: 2A (continuous pulse) / 3.2A (single pulse)
  • Ardulno Control Port: Digital pins 3, 4, 5, 6, 7, 8, 11, 12
  • Working Temperature: -20~85 degrees Celsius
  • Dimensions: 53mm x 52mm/2.09 x 2.05
  • Weight: 24g

Documents

  • Product WIKI: //dfrobot.com/wiki/index.php?title=Quad_Motor_Driver_Shield_for_Arduino_SKU:DRI0039
  • More Documents: //dfrobot.com/wiki/index.php?title=Quad_Motor_Driver_Shield_for_Arduino_SKU:DRI0039#More

Shipping List

  • Quad Motor Driver Shield for Arduino x1
