Raspberry Pi Expansion Board, DC Motor / Stepper Motor Driver Overview The RPi Motor Driver Board gives your Pi the ability to drive two DC motors OR one stepper motor. It\’s an ideal choice to DIY mobile robot based on Raspberry Pi. Features
- Supports Raspberry Pi A+/B+/2B/3B
- Freescale H-bridge driver MC33886, controls DC motors to turn in both directions
- Onboard 5V regulator, provides power to Raspberry Pi
- Onboard IR receiver, used for remote control robot
- Multi protection circuit, excellent stability
2A self-recovery fuse, keep your Pi safe Driver chip features Short-Circuit Shutdown for Large Output Current, Undervoltage Disable Function Reversed polarity protection for motor output Anti-reverse diode for power supply
- Power input range: 7V~40V
- Single motor output current: up to 5A
- Power supply current for Raspberry Pi: up to 2A
What\’s on Board
1. Raspberry Pi GPIO interface: for connecting Raspberry Pi
2. Motor screw terminal: for connecting motors
3. External power input
4. 74LVC4245AD: voltage level conversion chip, buffer device
5. MC33886: motor driver chip
6. LM2596-5.0: 5V regulator
7. Power indicator
8. Raspberry Pi power selection
OFF: Raspberry Pi powers the Motor Driver Board
ON: Motor Driver Board powers the Raspberry Pi
9. IR receiver
10. Schottky diodes: protects the motor driver
11. 2A self-recovery fuse
12. Power supply anti-reverse diode

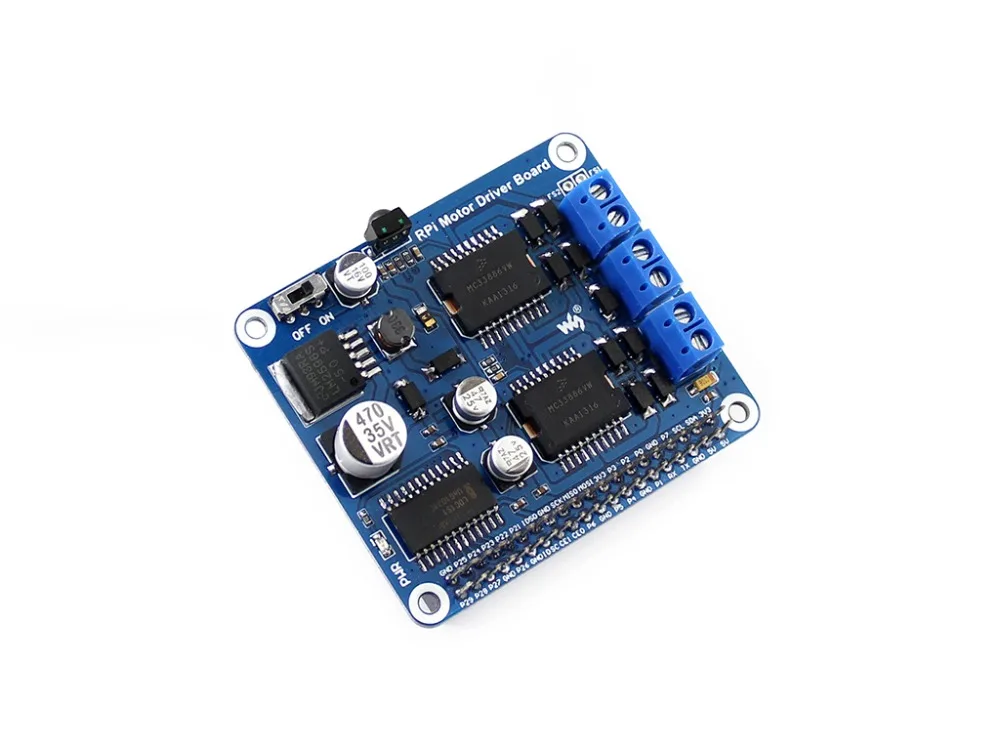

RPi Motor Driver Board
RPi Motor Driver Board back view
RPi Motor Driver Board connecting with Raspberry Pi
Note: photos are FOR REFERENCE ONLY, the other boards/modules/accessories are NOT included in the price.
Wiki : waveshare.com/wiki/RPi_Motor_Driver_Board
Weight: 0.036 kg
- RPi Motor Driver Board x 1
- RPi screws pack (2pcs) x 1
